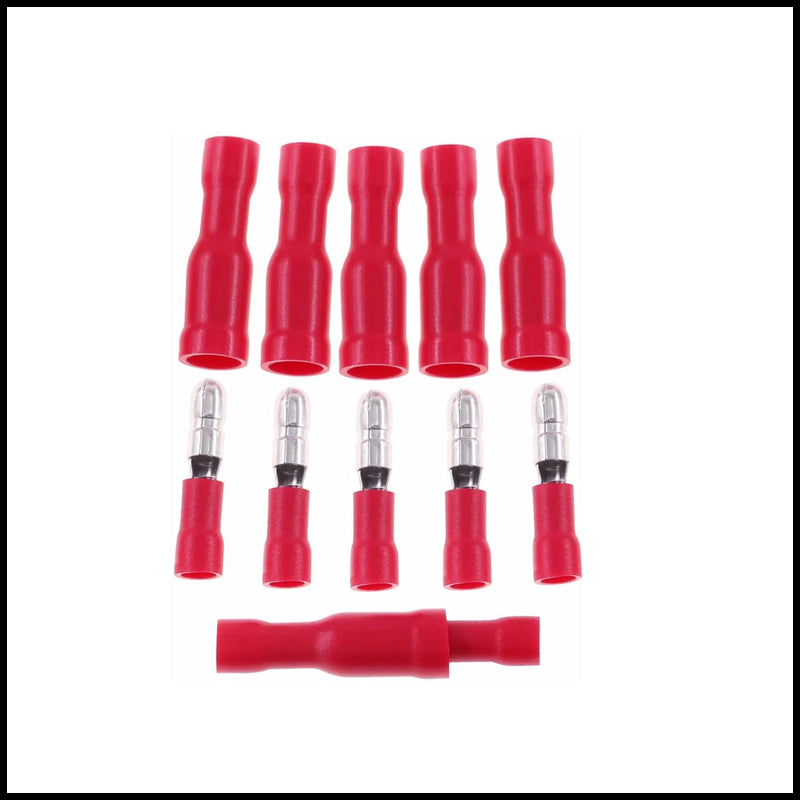

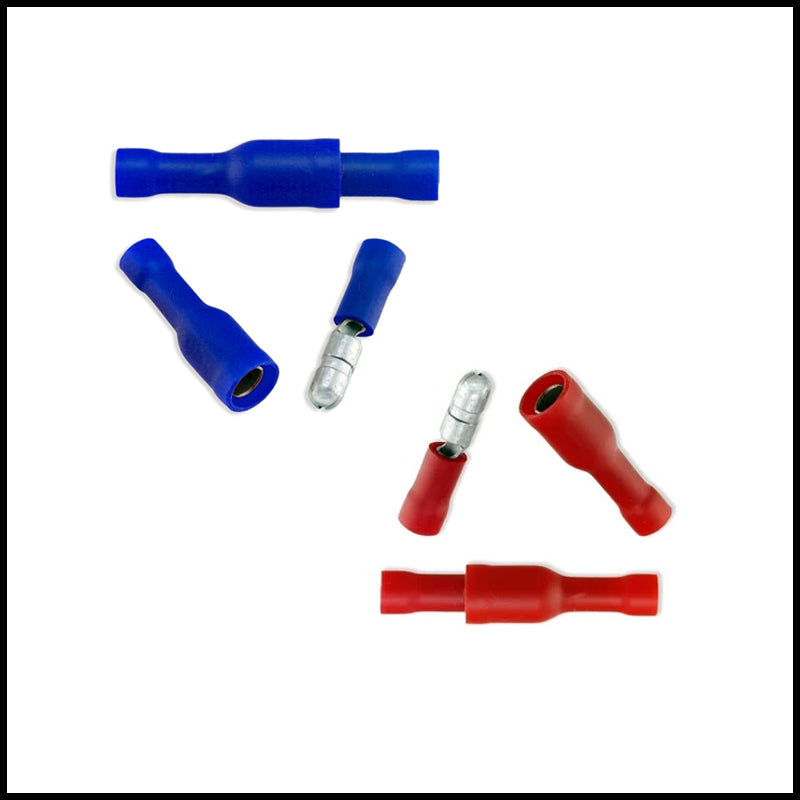

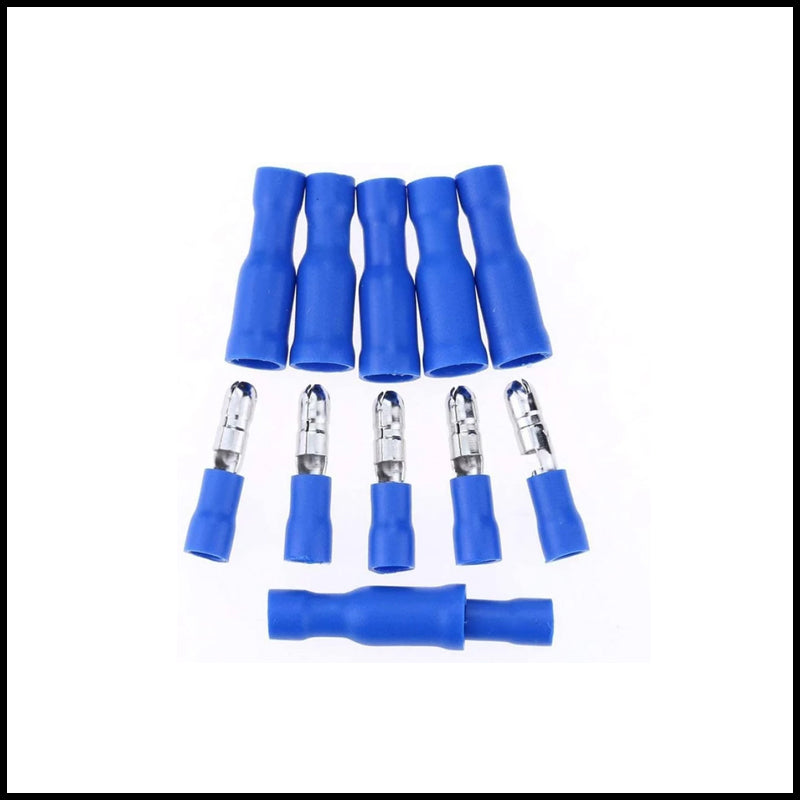

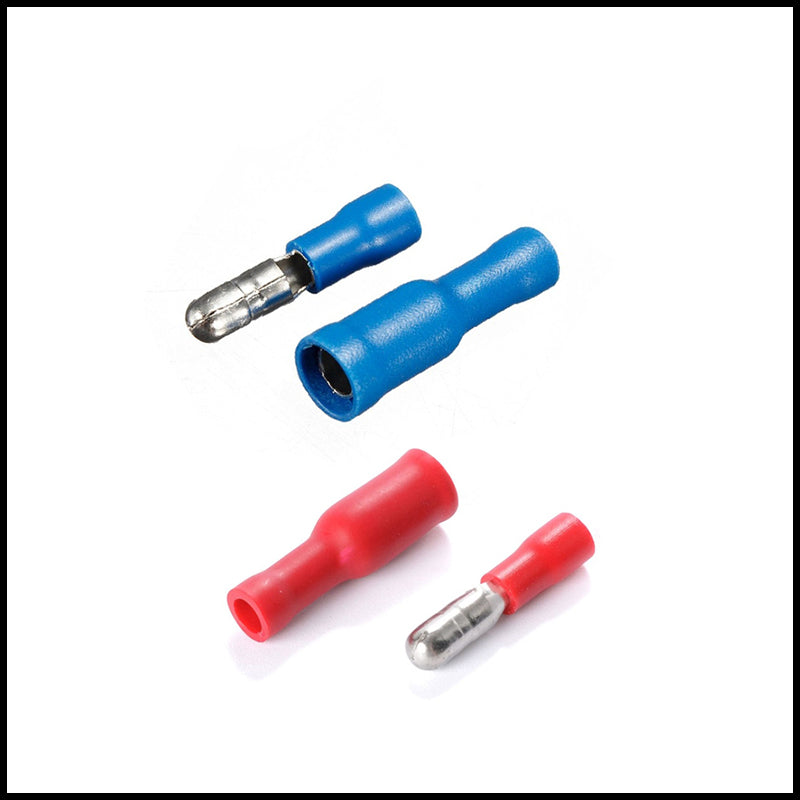

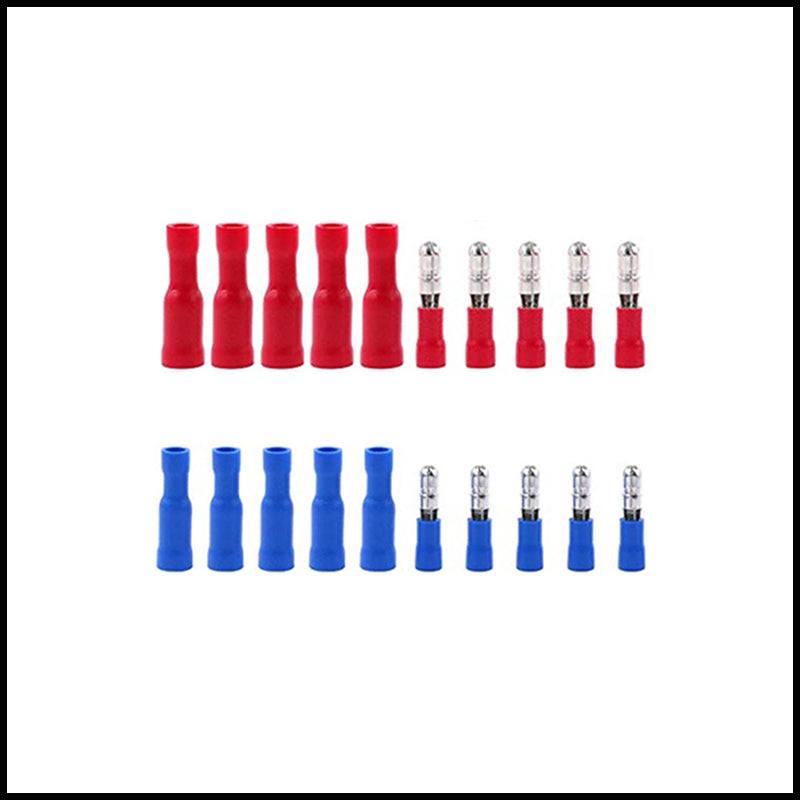

Bullet Connector MPD/FRD, Male Female Wire Connector Terminal, Insulated, 22-14 AWG
SKU:
MPD/FRD-1-156_50pcs
Availability:
In Stock
- Rs. 457.00
Rs. 685.00- Rs. 457.00
- Unit price
- per
Rs. 9.14 / piece · 50 pcs
Key specs
- Type
- Bullet Connector
- Wire size
- 22 AWG to 16 AWG
- Current
- 10A
- Insulation
- PVC
- Temperature
- 150 degree celsius
- Flammability
- (UL-94): V2
- Voltage
- 600V
- Colour
- Red
- Pack
- 50 pcs
Vendor: RPI SHOP
Bullet Connector MPD/FRD, Male Female Wire Connector Terminal, Insulated, 22-14 AWG
Vendor: RPI SHOP
Bullet Connector MPD/FRD, Male Female Wire Connector Terminal, Insulated, 22-14 AWG
6 options · prices include GST · dispatch in 1-2 business days
| Size | 50 pcs | 100 pcs | 200 pcs |
|---|---|---|---|
| MPD/FRD-1-156 (Red) | 50 pcs
Rs. 457 Rs. 9.14/pc | 100 pcs
Rs. 885 Rs. 8.85/pc | 200 pcs
Rs. 1,742 Rs. 8.71/pc |
| MPD/FRD-2-156 (Blue) | 50 pcs
Rs. 476 Rs. 9.52/pc | 100 pcs
Rs. 924 Rs. 9.24/pc | 200 pcs
Rs. 1,820 Rs. 9.10/pc |
Green = lowest price per piece for that size. Type quantities in any boxes, then add them all at once.
| Type | Bullet Connector |
|---|---|
| Wire size | 22 AWG to 16 AWG |
| Current | 10A |
| Voltage | 600V |
| Insulation | PVC |
| Temperature | 150 degree celsius |
| Flammability | (UL-94): V2 |
| Certification | RoHS |
| Recommended uses | Electrical Appliances |
|---|
| Colour | Red |
|---|
| Pack | 50 pcs |
|---|---|
| In the pack | 50pcs of Bullet Connector || MPD-1 - 25pcs | FRD-1 - 25pcs |
| Packaging weight | 100gms |
| Country of origin | India |
|---|---|
| Marketed by | RPI SHOP |
Features
- Easy Installation: With a male and female connection design, these bullet connectors provide a quick and hassle-free wiring experience. No soldering required, simply connect the wires for a secure and reliable connection.
- Versatile Application: Perfect for automotive, marine, and other electrical wiring projects. Ideal for connecting wires in vehicles, boats, motorcycles, and more.

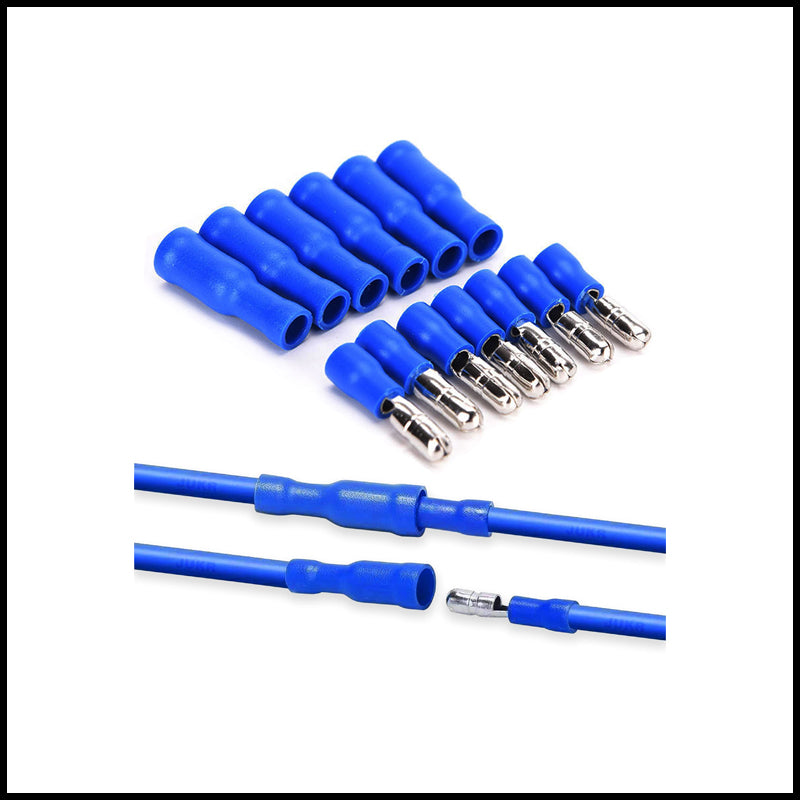

The bullet crimp simply pushes in and snaps together for a secure connection, making installation simple. You can also double-crimp the connector onto the wire for an even stronger hold. For long-term conductivity, the contacts are made of highly conductive tin-plated copper. The vinyl insulation also protects your wiring from damage as it's resistant to cracking and chemicals.
Bullet connectors are a popular choice for creating quick and reliable electrical connections in DIY projects and other electronics applications. Their rounded, plug-and-socket design allows for easy insertion and removal while providing a secure connection. Available in various sizes, bullet connectors are ideal for connecting wires in a wide range of projects.
