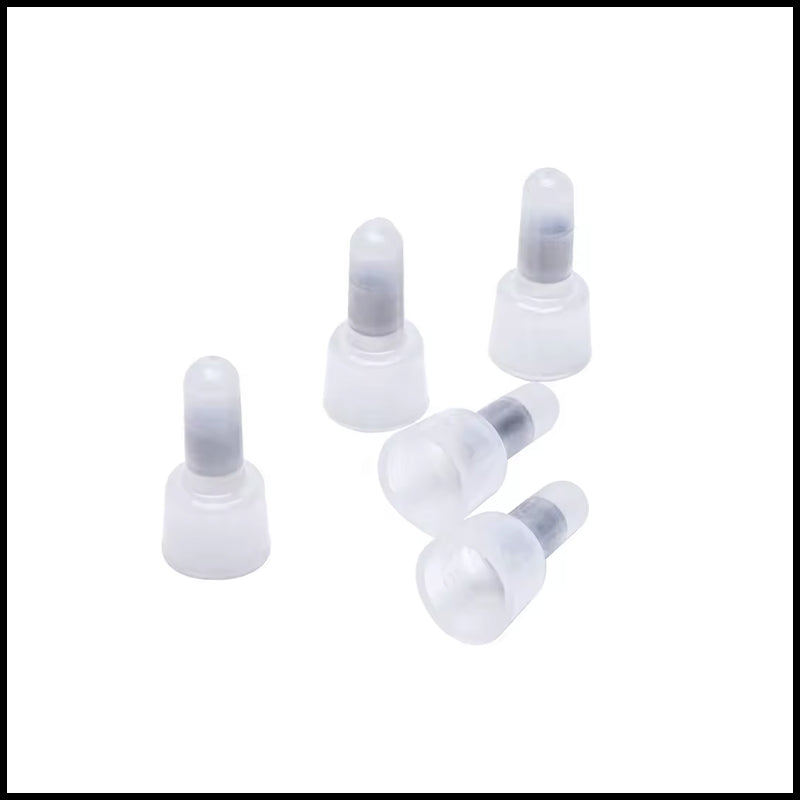

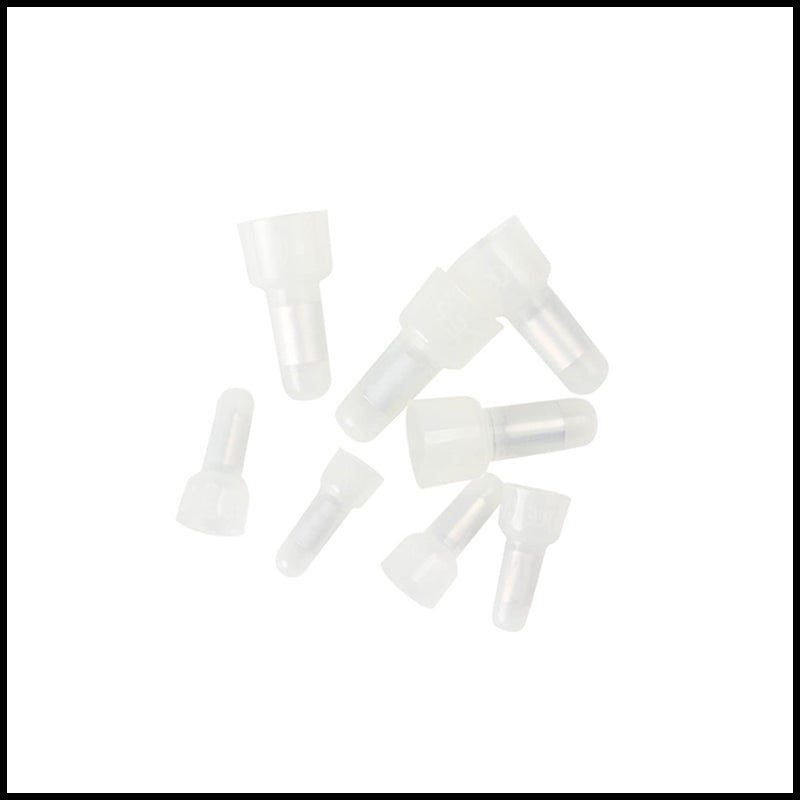

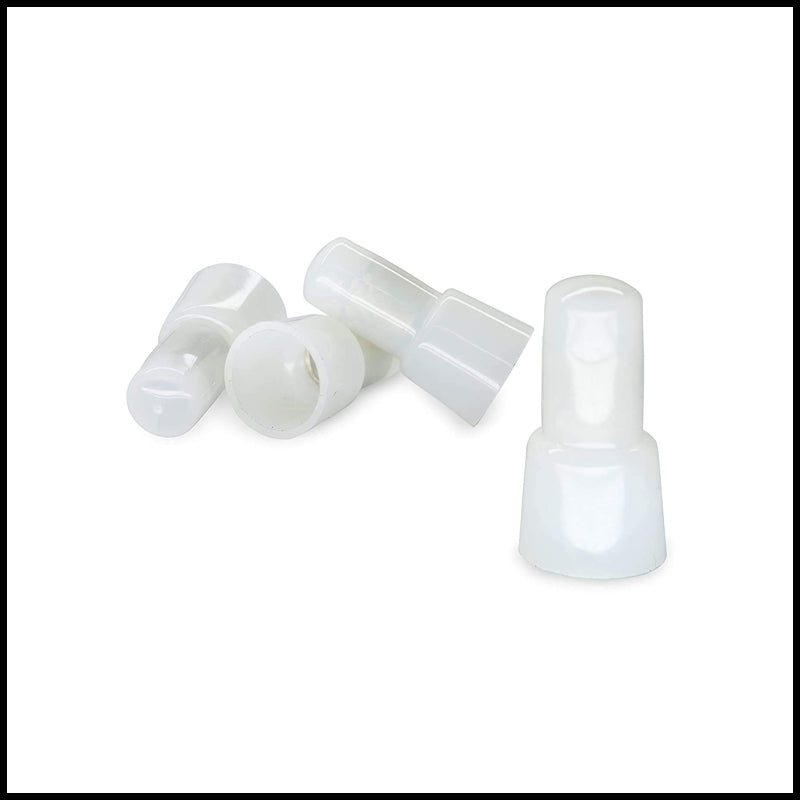

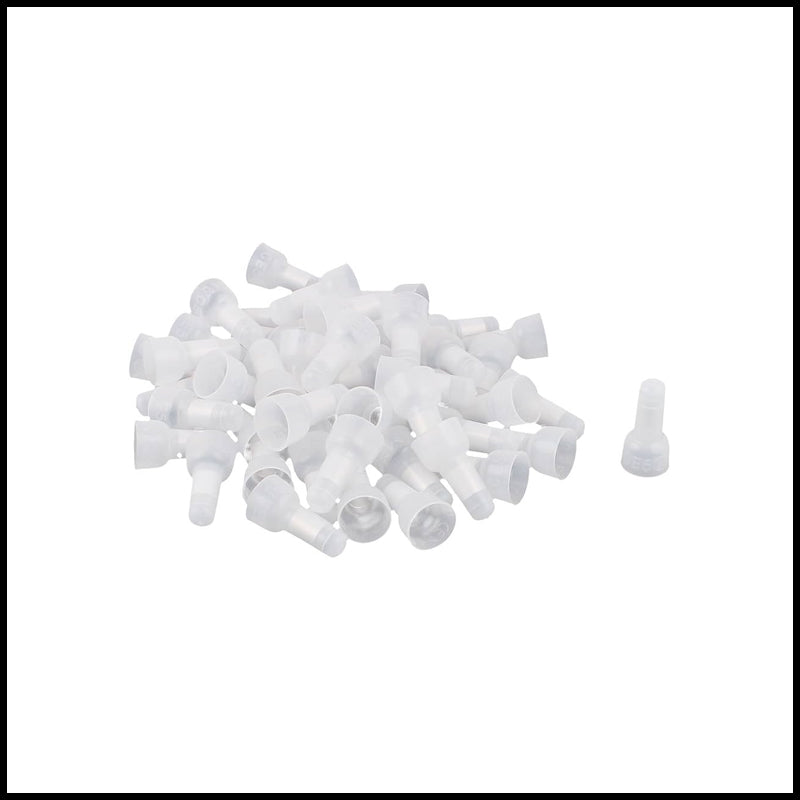

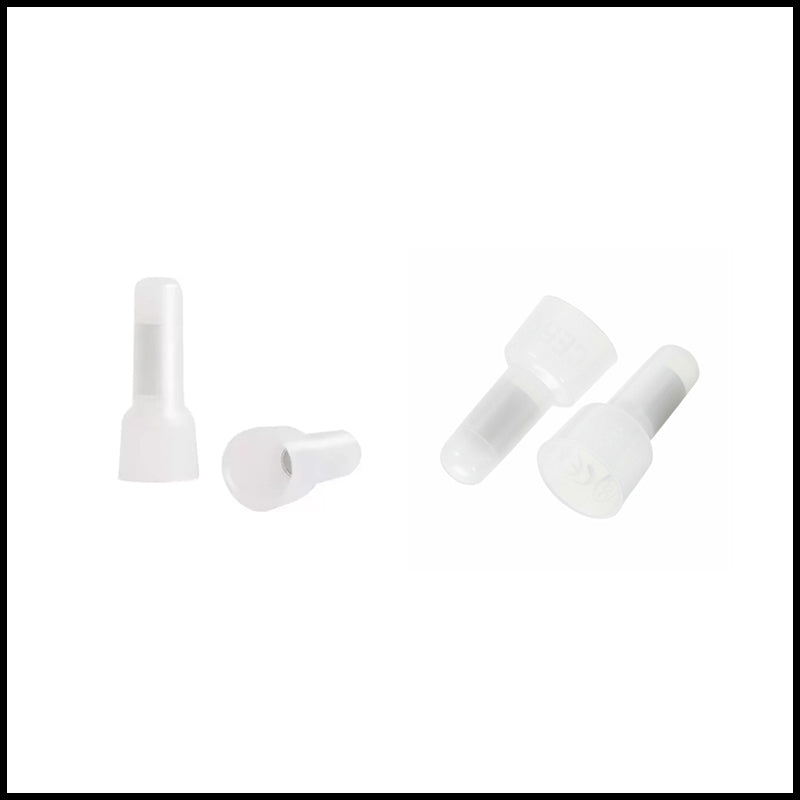

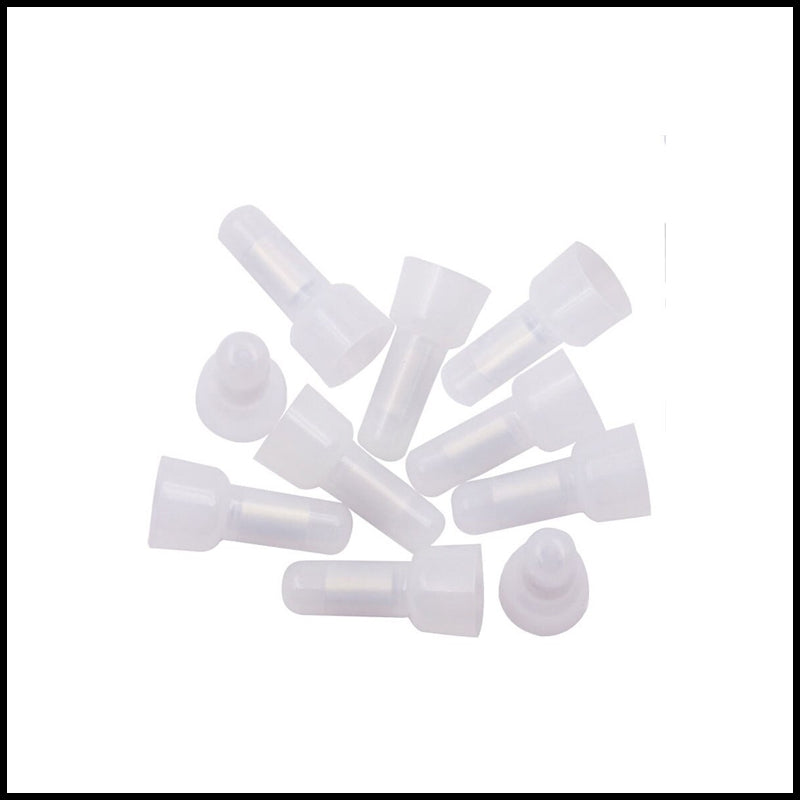

Closed end connectors are crimp-able for a quick, inexpensive, easy and permanent electrical connection of two or more wires. The outer insulating shell of the connector is made from nylon and houses a small tinned copper barrel. You simply insert your wires all the way into the closed end connector and crimp around the barrel using any standard wire crimpers. The connectors are able to connect multiple wires together and work well on both stranded and solid core wire. You can seal up the connector using dual wall heat shrink with adhesive, or you can wrap it with standard electrical tape.
Connector Wire Diameter | 16-14 AWG |
---|---|
Connector Outer Hole Diameter | 8 |
Connector Inner Hole Diameter | 3 |
Connector Type | Crimp Terminal With Insulation |
Voltage Rating | 300V |
Remarks | Easy to install |
Material | Conductor: Copper Tin-plated, Insulation: Nylon |
Product Dimensions | 15x15x5 |
Recommended Uses for Product | Electrical Appliances |
---|---|
Country of origin | India |
Lead Time | 24Hrs |
Packaging Weight | 100gms |
Manufacturer/Distributor | RPI SHOP |
Wiring Temperature Rating | -40°C to +105°C |
Wiring Manufacturer Model Number | CE 2 |
Connector Mounting Type | Enclosed type |
Connector Insulation Color | White |
Connector Insulation Material | Nylon |
Connector Ampere Rating | 27A |
Contents Included | 100Pcs of CE 2 Connectors |
---|
